Ready to ride?
Talk to us about the Redstone 550 — we will come back with a state-accurate ride-away price.

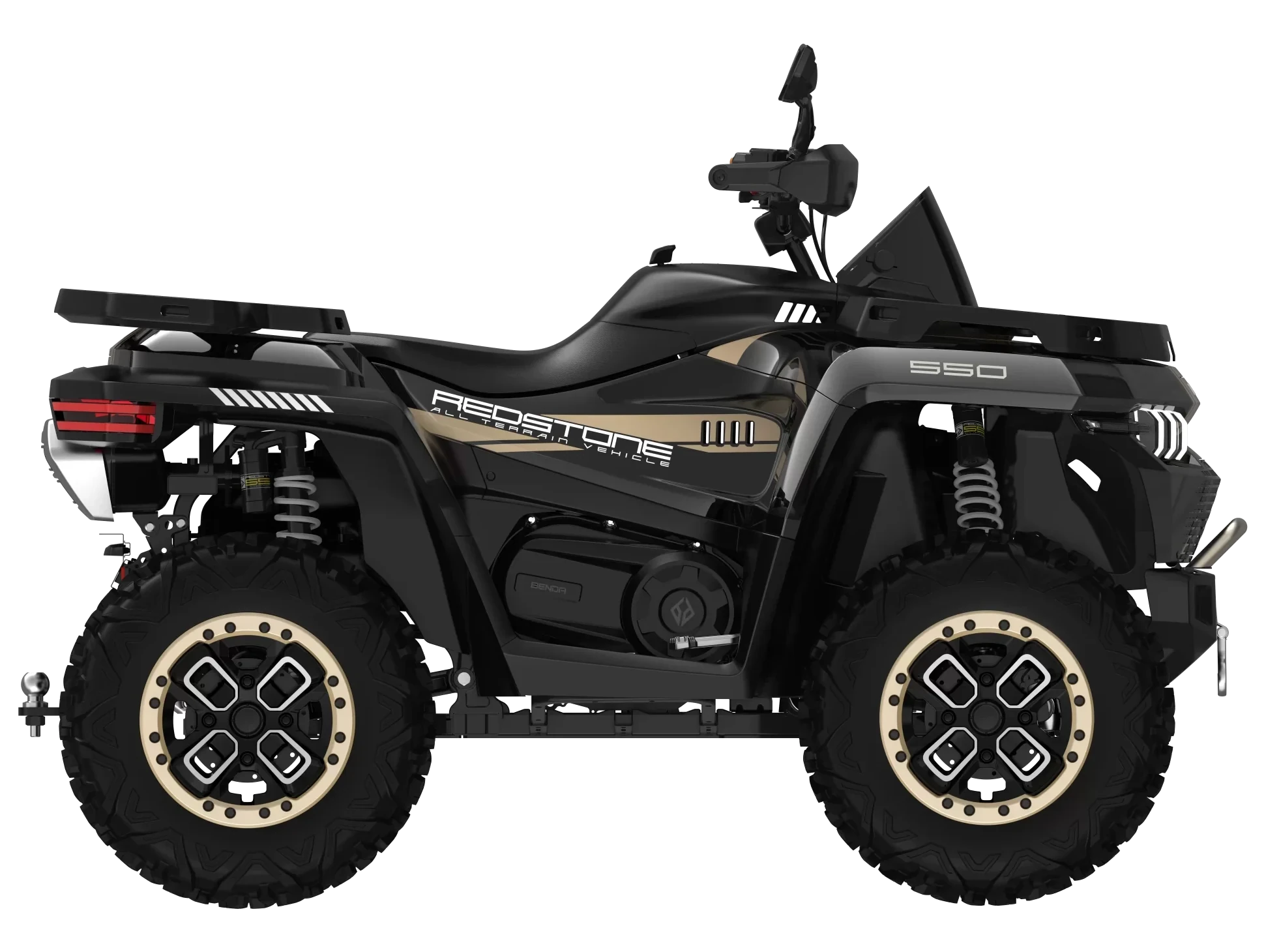

Redstone 550
Coming soon
- CVT
- 2WD/4WD
- ABS
- 48 hp
- Maximum power
- 46 Nm
- Maximum torque
- 498.4 cc
- Engine capacity
Redstone 550
Joy in every task
Rime Silver
Coming soon
- Power
- 48hp
- Torque
- 46Nm
- Engine
- 498.4cc
Where The Road Ends
48 horsepower.
And a tow hitch.

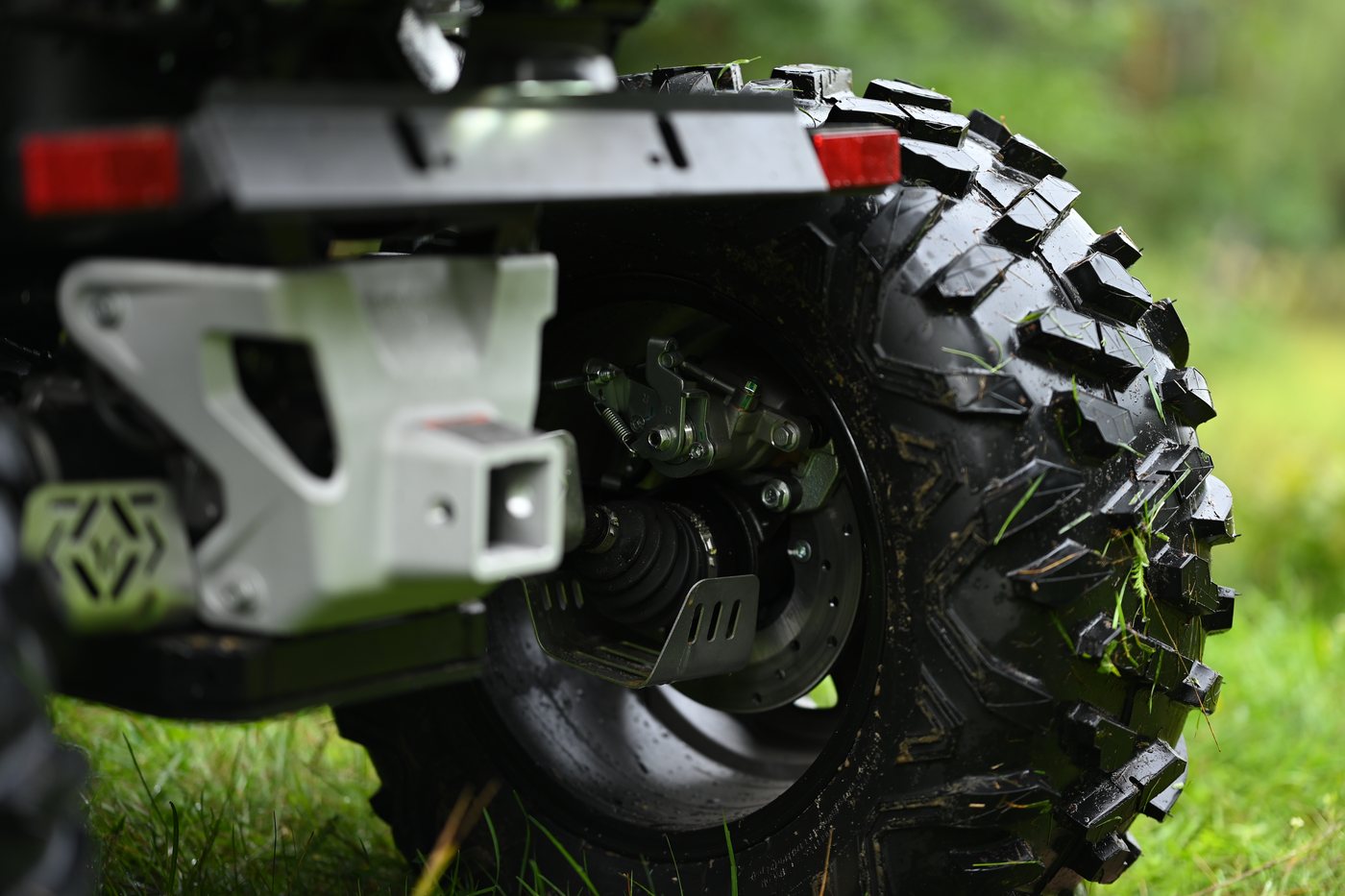

A V-twin BENDA developed in-house, with an intelligent electronic throttle metering it out for quicker response and less fuel burnt getting nowhere. Selectable 2WD/4WD with a diff-lock underneath, 305mm of ground clearance over it, and 900kg on a braked hitch behind — so the machine that got you out there is the one that drags the trailer home.
Features

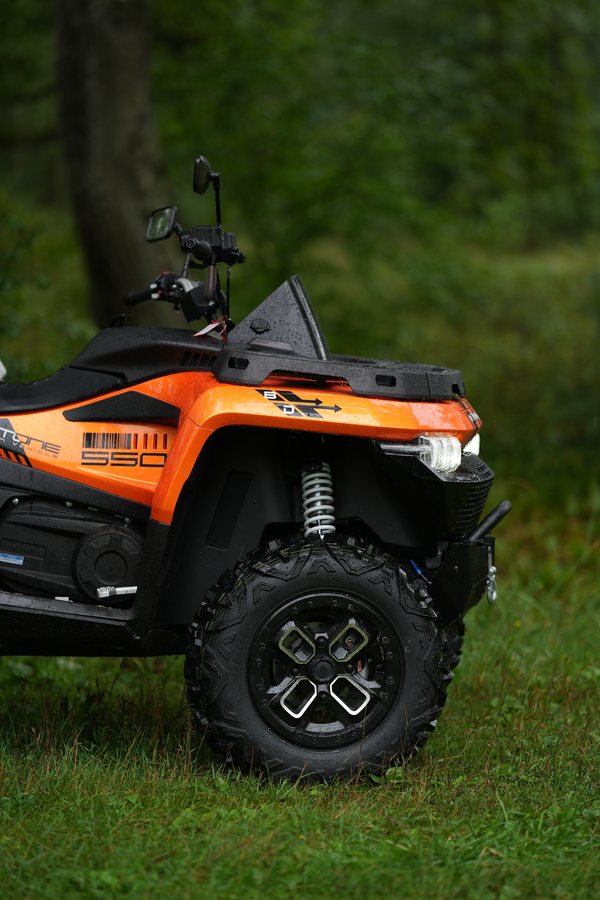

Dual A-arms and 230mm of travel at the front, a double A-arm rear, on a body of chromium-molybdenum steel and forged aluminium that carries 20% more for less weight.
Lateral roll angleTested for stability
The Redstone 550 has been tilt-table tested to Australia’s Quad Bike Safety Standard. Its lowest lateral roll angle is 34.4° — comfortably past the standard’s minimum of 28.8°.
| Direction | Tilt angle | Ratio | Required |
|---|---|---|---|
| Lateral roll, right | 34.4° | 0.68 | > 0.55 |
| Lateral roll, left | 35.7° | 0.72 | > 0.55 |
| Forward pitch | 44.8° | 0.99 | > 0.8 |
| Rearward pitch | 42.2° | 0.91 | > 0.8 |
Tested by Transport for NSW Crashlab, October 2026. Ratio is the tilt-table ratio, the tangent of the tilt angle. Always ride to the conditions and within your ability.
Technical data
Every published figure for the Redstone 550 — engine, dimensions, chassis and brakes — plus the equipment fitted as standard.
Full Redstone 550 specifications
Engine
- Type
- V2, 4-stroke SOHC, liquid-cooled
- Displacement
- 498.4cc
- Max. power
- 48hp
- Max. torque
- 46Nm/5500rpm
- Fuel System/Cooling
- EFI/Liquid
- Transmission
- CVT L/H/N/R/P
- Drive Train
- Selectable 2WD/4WD With Diff-Lock
Suspension
- Front Suspension
- Dual A-arm with sway bar, travel 230mm
- Front Shocks
- Adjustable Gas Shock Absorber
- Rear Suspension
- Double A-arm
- Rear Shocks
- Adjustable Gas Shock Absorber
- Front Tires
- 26×9-14in
- Rear Tires
- 26×11-14in
- Wheels
- 14in. alloy beadlock
- Brakes
- Hydraulic disc brakes front and rear, ABS
Dimensions
- Length
- 2,165mm
- Width
- 1,245mm
- Height
- 1,260mm
- Wheelbase
- 1,300mm
- Ground Clearance
- 305mm
- Estimated Dry Weight
- 415kg
- Braked Towing Capacity
- 900kg
- Fuel Tank Capacity
- 30L
- Seats
- 1
- Seat Height
- 950mm
Standard equipment
Brakes
- Brakes: Hydraulic disc brakes front and rear, ABS
Suspension & chassis
- Front Suspension: Dual A-arm with sway bar, travel 230mm
- Rear Suspension: Double A-arm
- Front Shocks: Adjustable Gas Shock Absorber
- Rear Shocks: Adjustable Gas Shock Absorber
Wheels & tyres
- Front Tires: 26×9-14in
- Rear Tires: 26×11-14in
- Wheels: 14in. alloy beadlock
Drivetrain
- Transmission: CVT L/H/N/R/P
- Drive Train: Selectable 2WD/4WD With Diff-Lock
- Fuel System/Cooling: EFI/Liquid
Standard features

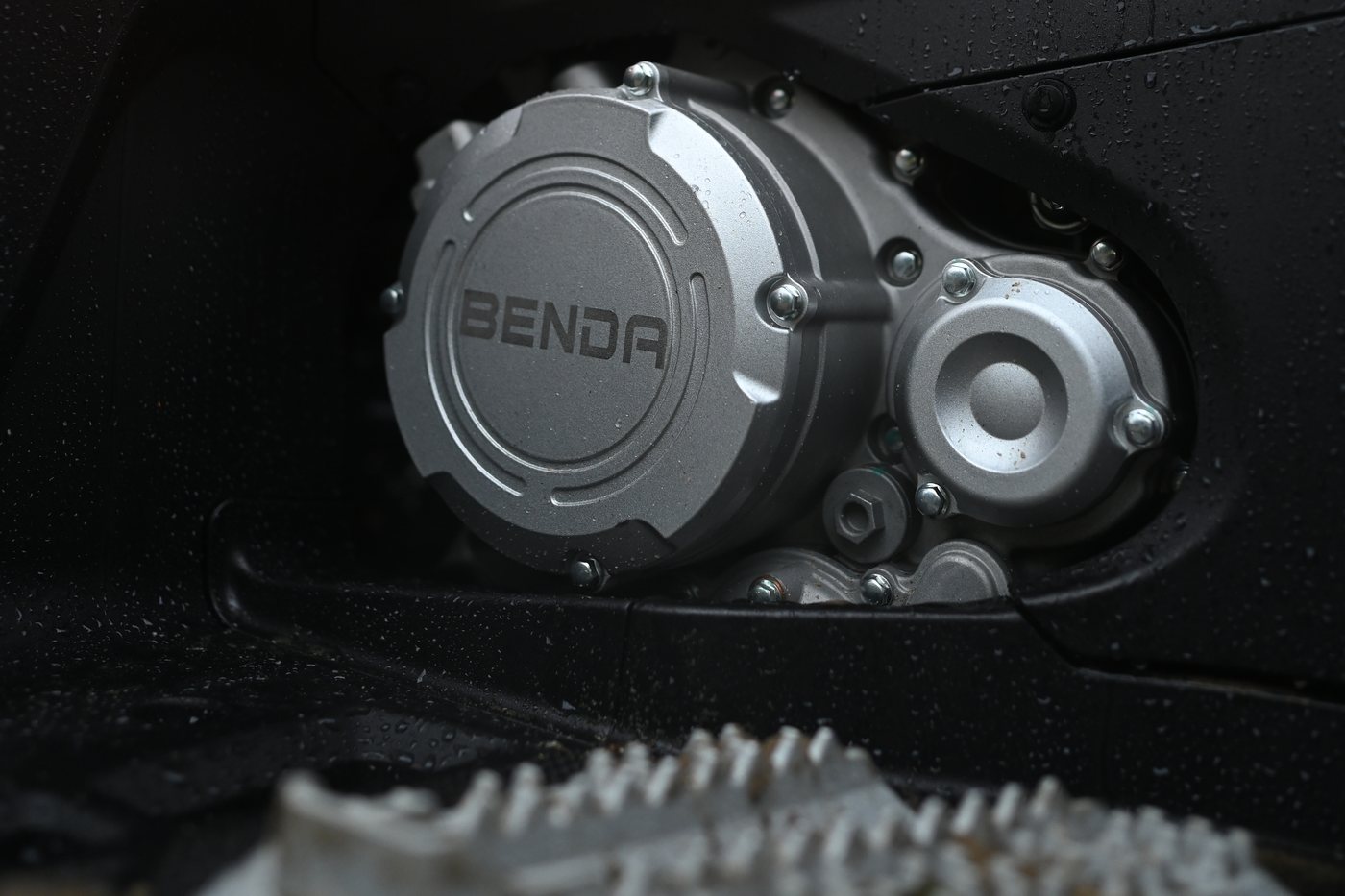

- Class-leading Power: V-Twin engine developed in-house that produces an industry-leading 48hp. Paired with an intelligent electronic throttle, it ensures a smooth ride with precise control, quicker response and improved efficiency.
- High-strength, Lightweight Body: High strength chromium-molybdenum steel and forged aluminium provides 20% more load-bearing capacity while decreasing the weight. Increased rigidity, improved safety and handling performance.

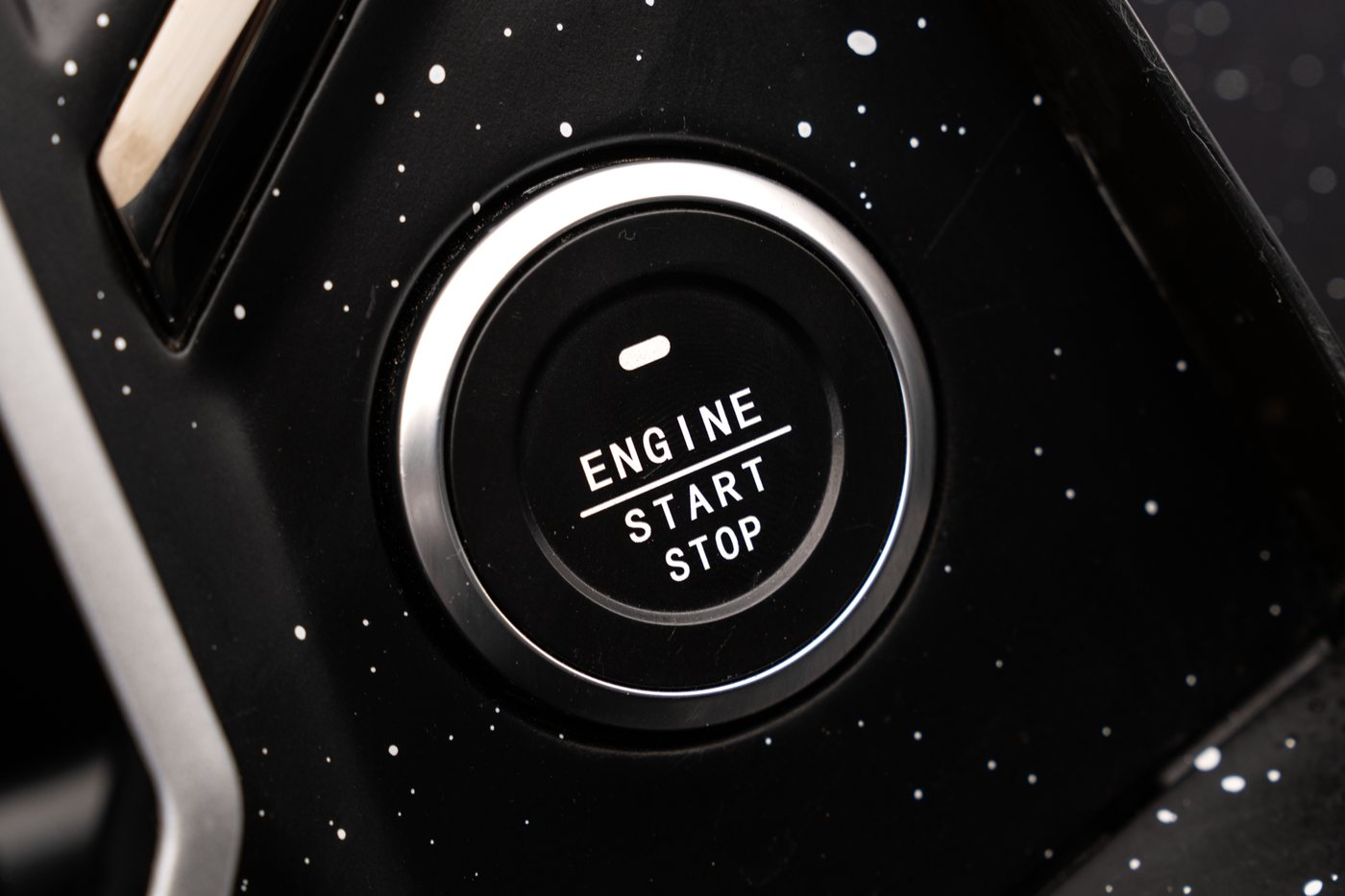

- NFC Key Card Start: Innovative key card with NFC start - Easily start your Redstone 550 using the NFC key card - a first in the ATV segment.

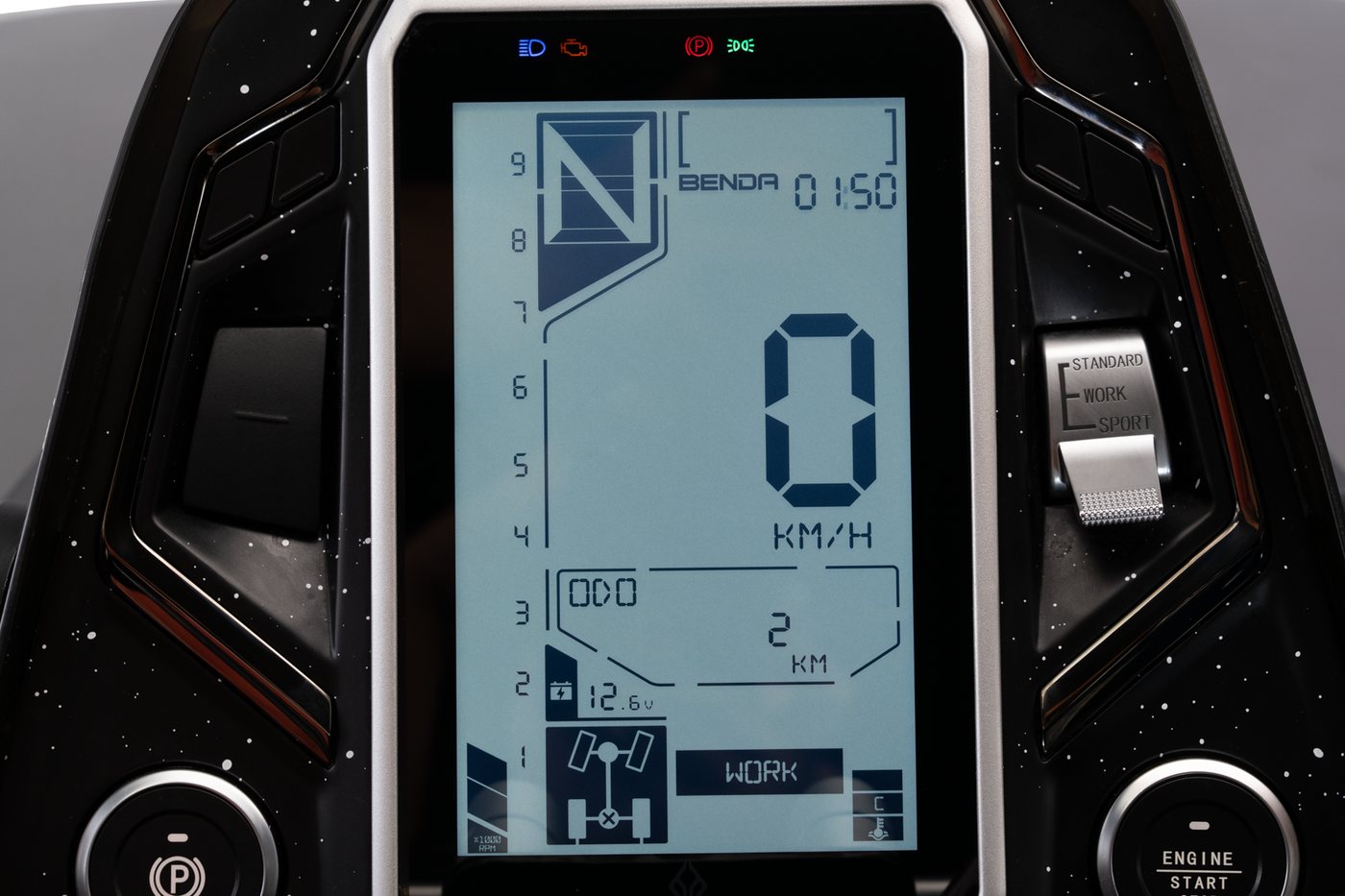

- Digital Cockpit with Drive Modes: Clearly and easily see all your vital information on your large colour digital dashboard, and switch between Standard, Work and Sport drive modes.

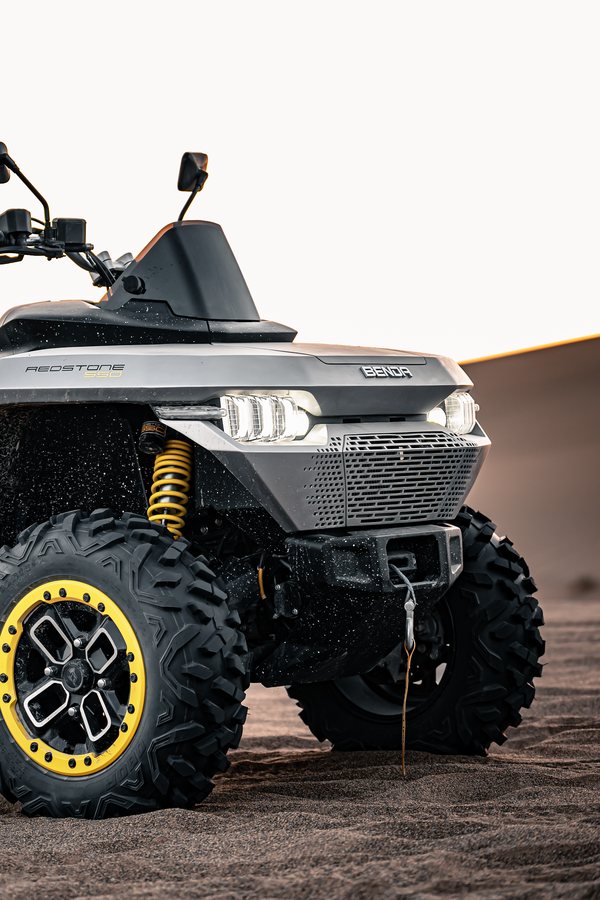

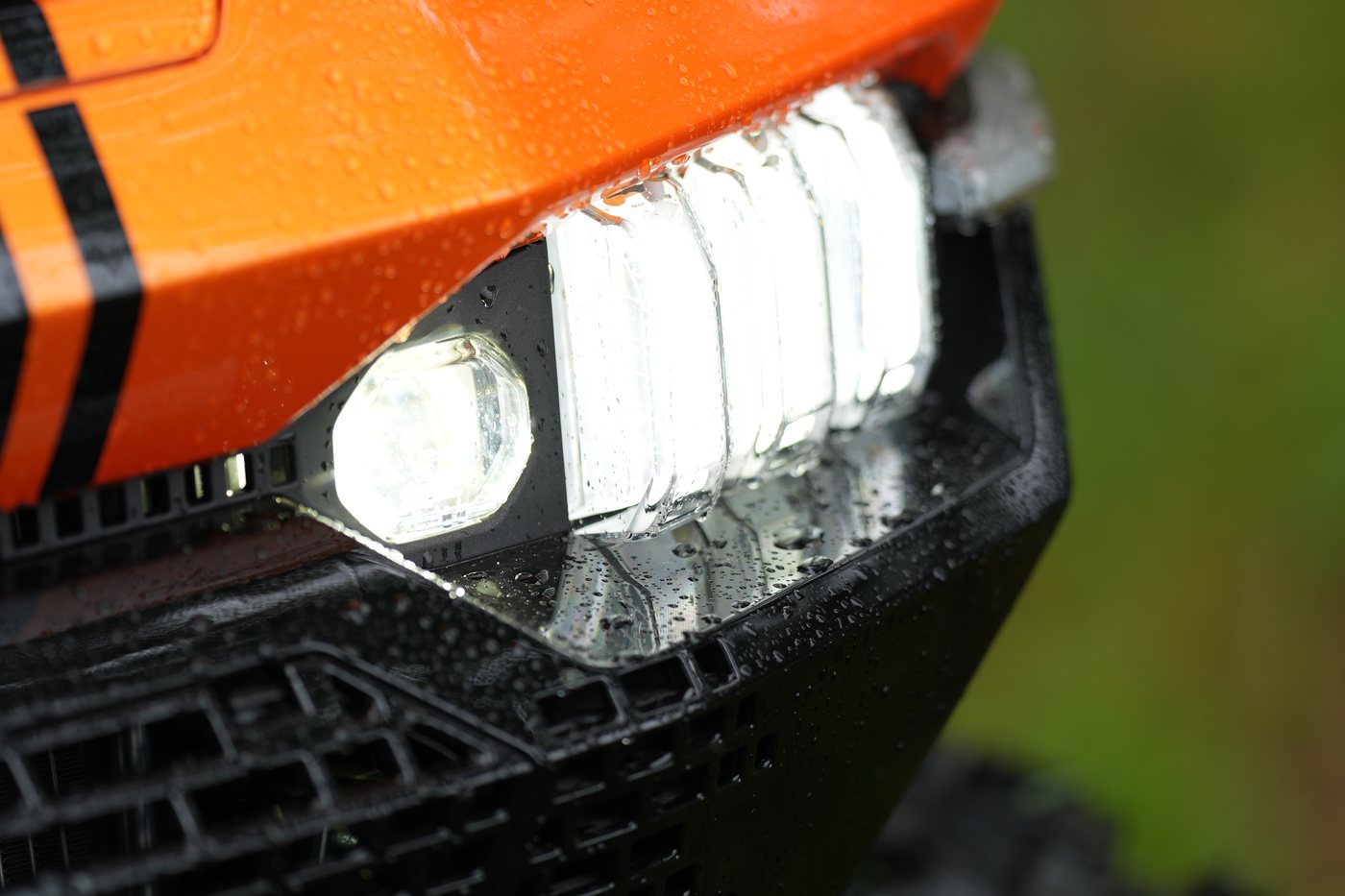

- Avant-garde Lights: Automotive-grade matrix LED headlights mean the fun doesn't stop after sunset. Light up the road ahead with brilliantly bright and efficient lights.
Which BENDA is right for you?
Compare by
Redstone 550R2
Coming soon
- CVT
- 2WD/4WD
- ABS
- 48 hp
- Maximum power
- 46 Nm
- Maximum torque
- 498.4 cc
- Engine capacity
Redstone 1000R2
Coming soon
- CVT
- 2WD/4WD
- ABS
- 102 hp
- Maximum power
- 92 Nm
- Maximum torque
- 997.1 cc
- Engine capacity
Redstone 1000 Mud
Coming soon
- CVT
- 2WD/4WD
- 102 hp
- Maximum power
- 92 Nm
- Maximum torque
- 997.1 cc
- Engine capacity

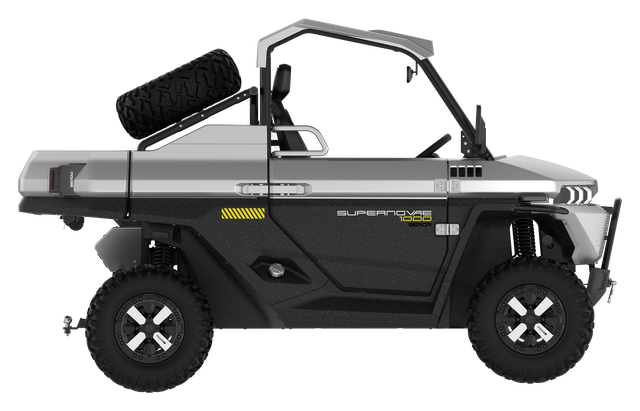

Supernovae 1000
Coming soon
- CVT
- 2WD/4WD
- 98 hp
- Maximum power
- 92 Nm
- Maximum torque
- 1000 cc
- Engine capacity

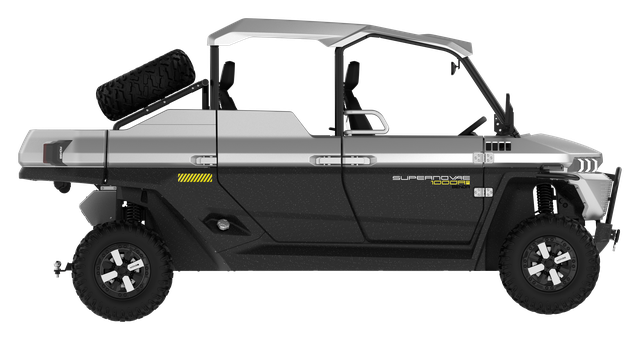

Supernovae 1000R2
